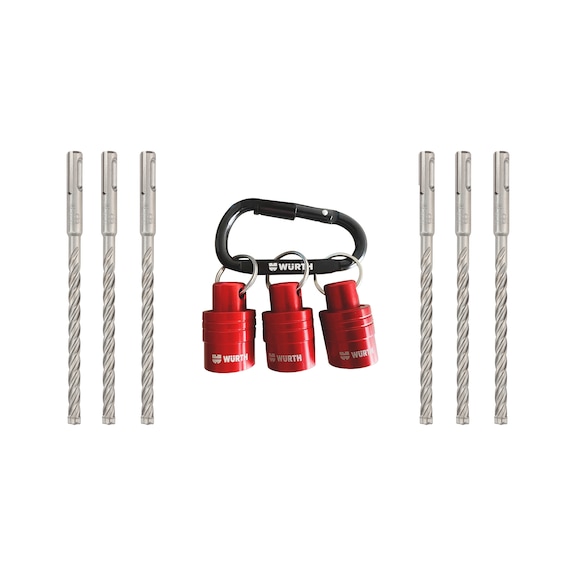

Hammer drill bit Plus Quadro-L set with bit holder
The Carabiner with 3 Plus attachments, provides operator with quick and convenient bit changes for all products. The Hammer Drill Bit is the perfect solution for reinforcements and hard materials, featuring an innovative and symmetrical head geometry with four cutting edges and a new multi-zone conveyor helix with an optimised diameter
Register now and access more than 20,000 products
Variants
Register now and access more than 20,000 products
Enhanced Safety
The lockable mechanism prevents accidental opening, offering crucial peace of mind when working at heights or in demanding environments
Versatile Attachment
Featuring three plus attachment points, provides quick and easy bit changes on the go and allows for the convenient storage of multiple bit types
Lightweight Design
Crafted for optimal portability, the lightweight construction ensures reduced user fatigue when carried for extended periods
One-Hand Release
Convenient one-hand release mechanism allows for quick and easy detachment, streamlining your workflow
Hammer drill bit Plus Quadro-L:
Significantly improved service life in reinforcements and concrete
- Due to the innovative and symmetrical head geometry with four cutting edges, the solid carbide head (dia. 5-20 mm) and the one-piece carbide element and Peak design (dia. 22-32 mm)
- The reinforcement margins on the cutting edges prevent the drill bit from jamming or running off-centre when hitting reinforcements, for example
Noticeably quicker drilling
The enhanced tip geometry with power edges, additional dust grooves and curved cutting edges (dia. 5-20 mm) ensure fast drilling progress and transport drill cuttings to the conveyor helix
New multi-zone conveyor helix with optimised diameter for noticeably increased breakage resistance, improved drilling speed and optimum removal of drill cuttings
- Alternating wide and narrow spiral flutes in Speed and Heavy Duty designs and optimised spiral core strength, as well as wide flutes and thicker core in the head area for dia. 5-20 mm
- Spiral with reinforced core, reduced weight and significant increase in spiral volume for dia. 22-32 mm
Precise spot drilling
The special self-centring tip with homogeneous and smooth transitions enables precise spot drilling
Convex shank end and transition zone
The ball-shaped end of the shank and the transition zone (smooth transition from spiral to shank from dia. 18 mm) ensure a more targeted and therefore more effective transfer of impact energy to the drill tip, therefore ensuring faster drilling progress
Wear indicators on the drill head
Indicators for assessing the dimensional accuracy of anchor holes
